Download: Adapter 6V10A
• 100% brand new and tested before shipping
• Stable operation in use environment
• Efficiency 85% Min. at 100Vac and 240Vac input and output 100%Load
• Overload protection
• Short circut protection
• Over temperature protection
• Saving Power
• Wide input range,high precision voltage
• Warranty time ≥12 months
• Error rate ≤1%

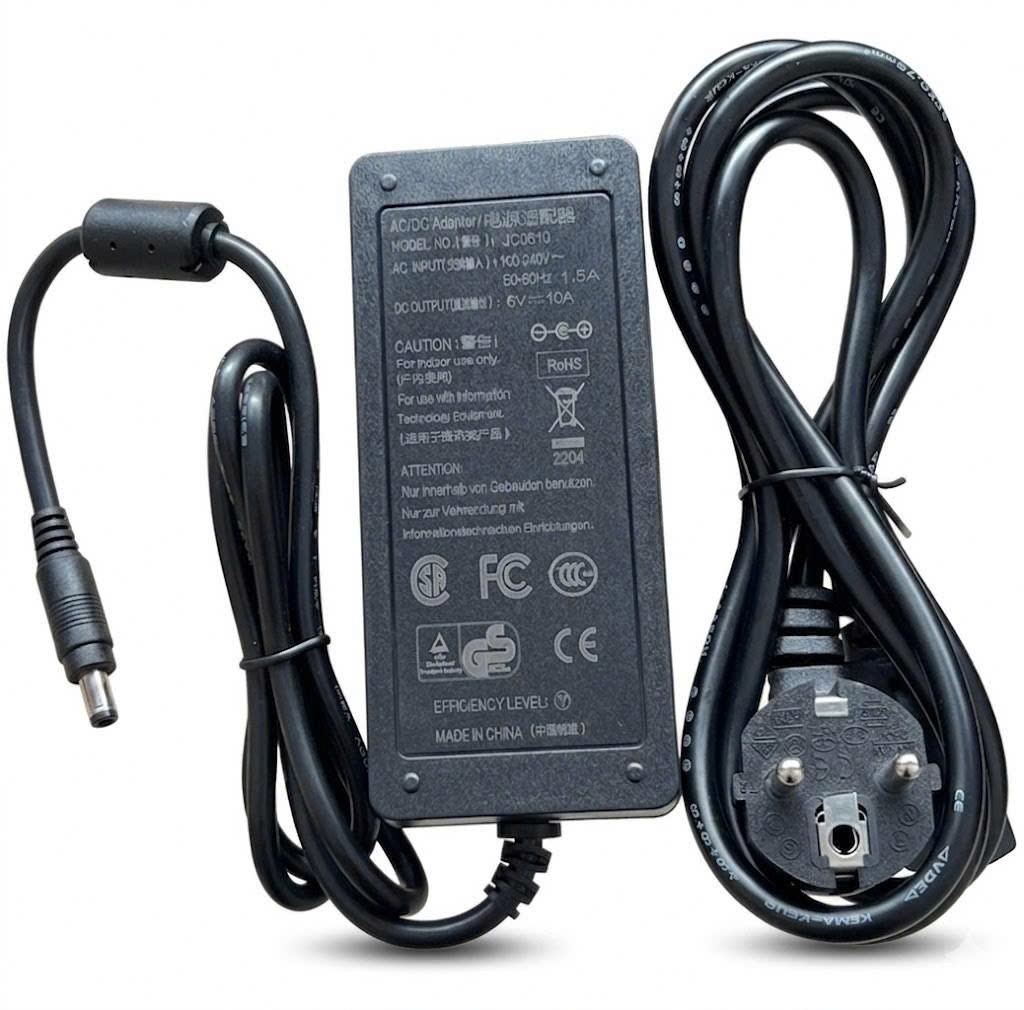

Model
JC0610
Shell material
ABS+PC plastic
Color
Black
Output
DC output voltage：6VDC
Output voltage tolerance：±10%
Rated output current：10A ±5%
Output power：60W ±10%
Ripple and noise (Vpp)：≤ 120mV
DC Connector type：5.5x2.5mm
Output cable length：1000mm±10mm
Input
Input voltage range: 100-240V AC@50-60Hz
AC input plugs: European, 2 pin
Input cable length: 1400mm±10mm
Frequency range: 50-60Hz
Protection
Over load protection: 130%~150% rated output power
Protection mode : Hiccup mode ,auto-recovery after fault condition is removed
High temperature protection: RTH3≥65ºC~70ºC cut off output
Protection mode : Hiccup mode ,auto-recovery after fault condition is removed
Environment
Operating temperature range: 0ºC~ 40ºC
Working humidity: 20%~90% RH non-considering
Storage Temp, humidity: 0ºC~ 40ºC
Vibration: 10~500Hz, 2G 10min./1 cycle, period for 60 min. each along X Y Z axes
Safety
Withstand voltage： I/P-O/P:15000 VDC
Safety standards：EN60950/IEC60950/IEC62368-1
Insulation resistance：I/P-O/P:100M Ohms/500VDC/25ºC/70%RH
EMI conduction&radiation：Compliance to EN55024, EN61000-3-3
EMS immunity：Compliance to EN61000-3-3
Harmonic current：Compliance
Others
Weight/Packing: 0.45KG
Dimension: 128mm x 56mm x 34mm ±5mm
